Axle Strain Sensor Weighing System
Axle Strain Sensor Weighing Systems:
Precision Vehicle Weighing Technology

Axle strain sensor weighing systems offer enhanced precision and improved long-term reliability for vehicle weighing.


Technical Limitations of Traditional Weighing Systems
Inherent Defects in Measurement Principles

Current mainstream onboard weighing systems primarily employ two measurement approaches:


——Suspension Deflection Measurement: Monitors spring suspension compression to calculate load weight. This method is constrained by spring fatigue, non-linear characteristics, and temperature effects.


——Air Bag Pressure Measurement: Calculates weight through monitoring pressure changes within air bag suspension systems. While offering rapid response, air bag leakage, aging, and pressure sensor temperature drift all compromise measurement accuracy.

Long-term Accuracy Degradation Issues

Both spring and air bag suspension systems face inevitable material aging problems:

——Spring Systems:
Long-term load cycling leads to elastic modulus degradation and permanent deformation accumulation.
——Air Bag Systems:
Rubber material aging, seal performance deterioration, and internal pressure instability Sensor Drift: Temperature variations, mechanical stress, and electronic component aging cause measurement baseline drift. These factors make long-term accuracy difficult to guarantee for traditional systems, typically requiring frequent recalibration and maintenance.

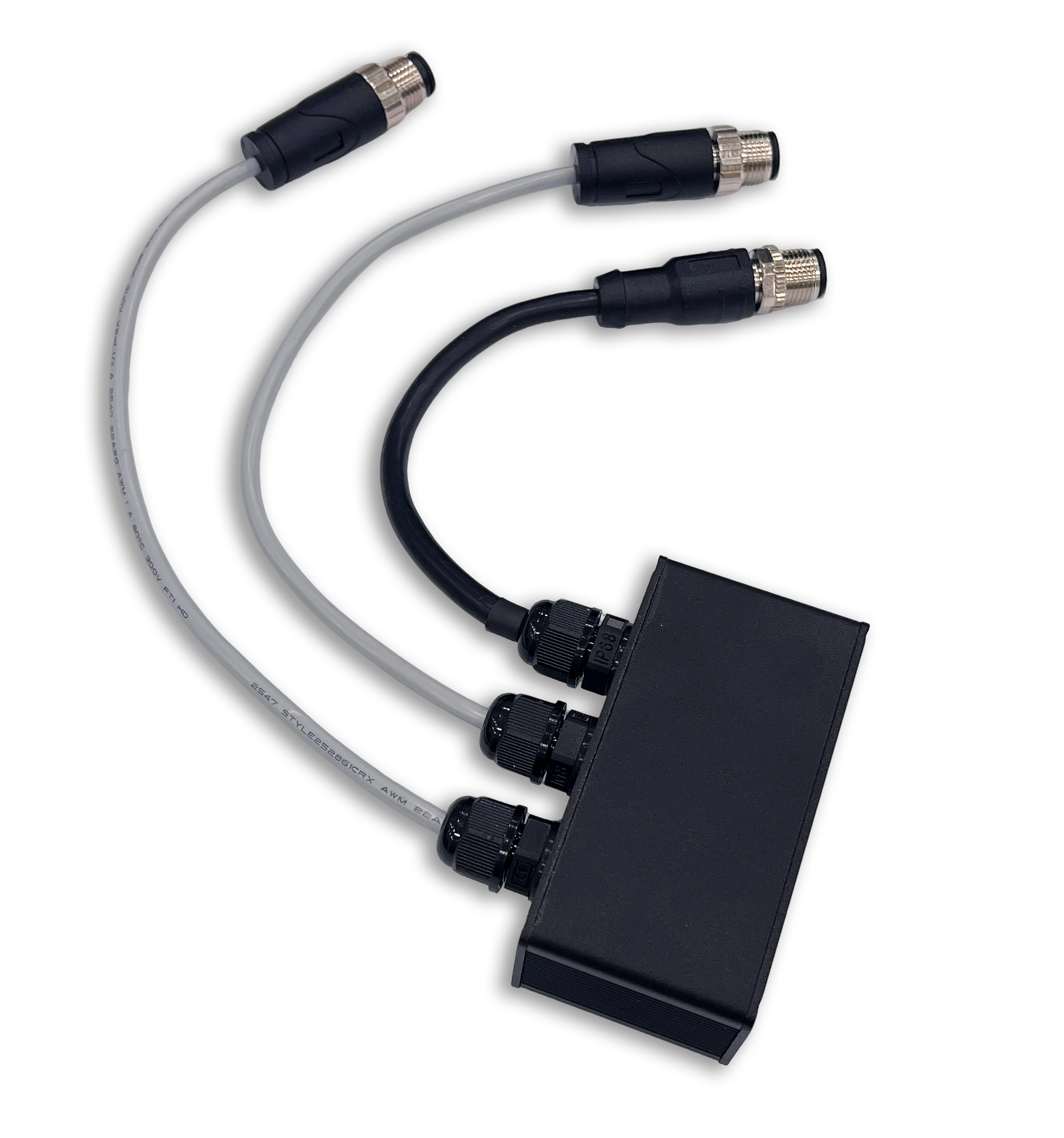

ABUIABAEGAAg1pvfxQYopJSIqwQw0Bc4ohk

Our axle strain sensor systems achieve:

         Overall Accuracy: ±2%

Linearity: ±1%

Repeatability: ±1%

Temperature Drift: Only 0.05%


Real-time Dynamic Response:

Strain gauges provide instantaneous response to load changes, enabling real-time   weight   monitoring   during   vehicle   operation,   acceleration, and braking scenarios.

Multi-axle Integration:

Advanced systems can simultaneously monitor multiple axles, providing comprehensive vehicle weight distribution analysis and detecting uneven loading conditions that could affect vehicle stability and tire wear.

Environmental Resilience:

Strain gauge technology demonstrates excellent performance across extreme temperature ranges (-20°C to +60°C), high humidity conditions, and vibration-intensive environments where traditional sensors may fail.

Fatigue Resistance:

Unlike mechanical components in suspension-based systems, properly installed strain gauges can withstand millions of load cycles without degradation, making them ideal for high-frequency commercial applications.





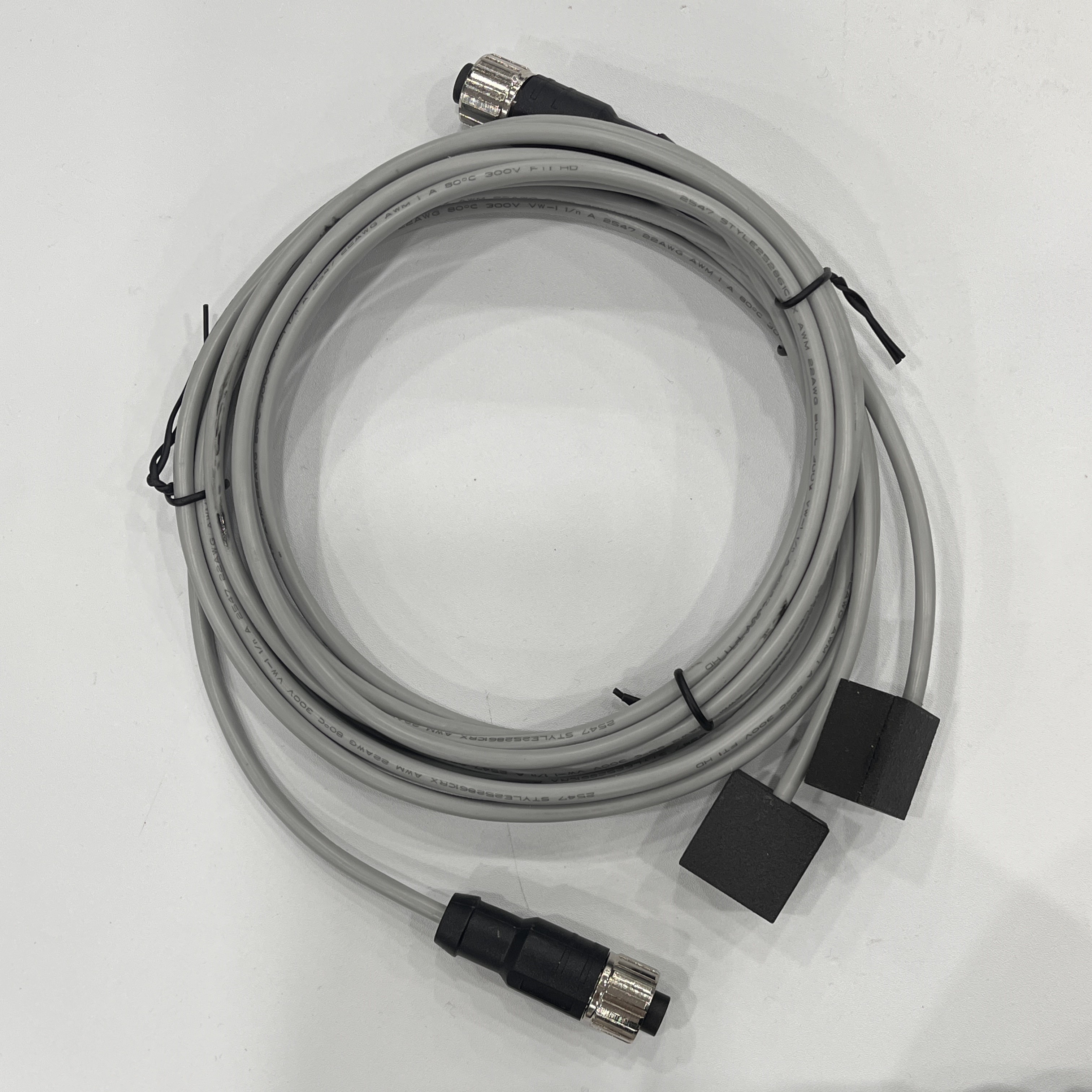

ABUIABACGAAgjqHbxQYo4qzb_AMw0Bc40Bc
Technical Advantages of Axle Strain Sensor Weighing Systems

Direct Measurement Principle with Enhanced Accuracy

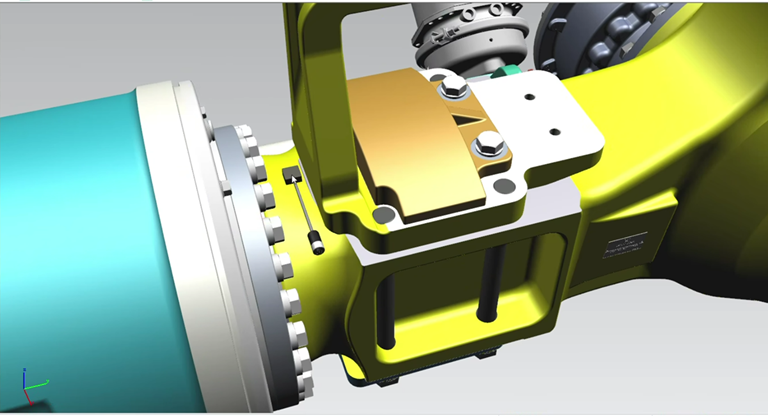

Axle strain sensors employ direct axle strain measurement to determine load weight, bypassing suspension system intermediaries:

——Simplified Measurement Chain: Load → Axle Strain → Electrical Signal Output, reducing measurement error accumulation

——Linear Response Characteristics: Metal axle elastic deformation exhibits excellent linear relationship with load

——Temperature Compensation Mechanism: Advanced temperature compensation algorithms ensure measurement consistency across different environmental conditions


Outstanding Long-term Stability

Metal vehicle axles, as load-bearing structures, possess excellent material stability:

——Stable Material Properties: High-strength steel elastic modulus remains essentially constant under normal operating conditions

——No Mechanical Wear: Strain measurement involves no moving parts, eliminating precision degradation from mechanical wear

——Self-compensation Capability: Through multi-point strain measurement and intelligent algorithms, the system provides automatic compensation and correction

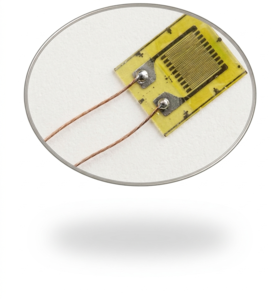

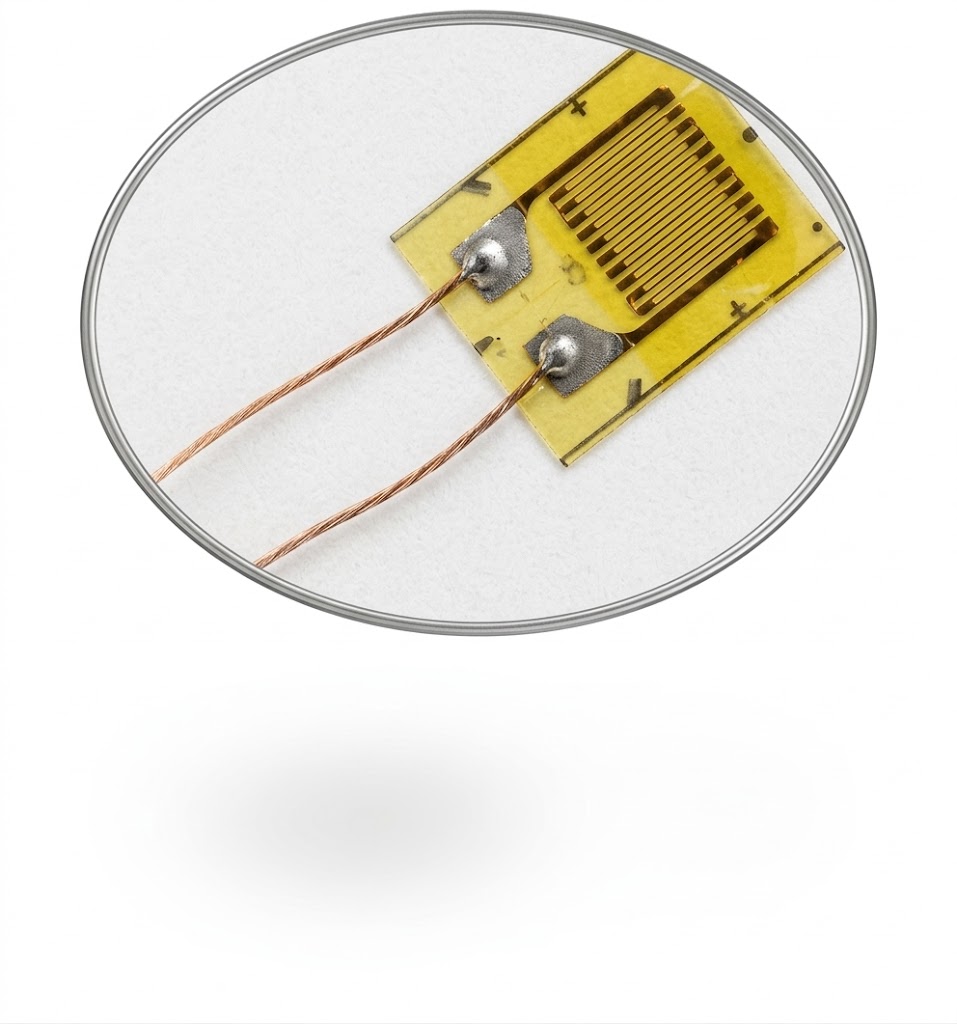

Gauge Sensors

Proprietary high-precision, long-life sensors; Exclusive pre-packaging technology ensures accuracy and sensitivity;Simplified structural design for easy installation and extended service life;

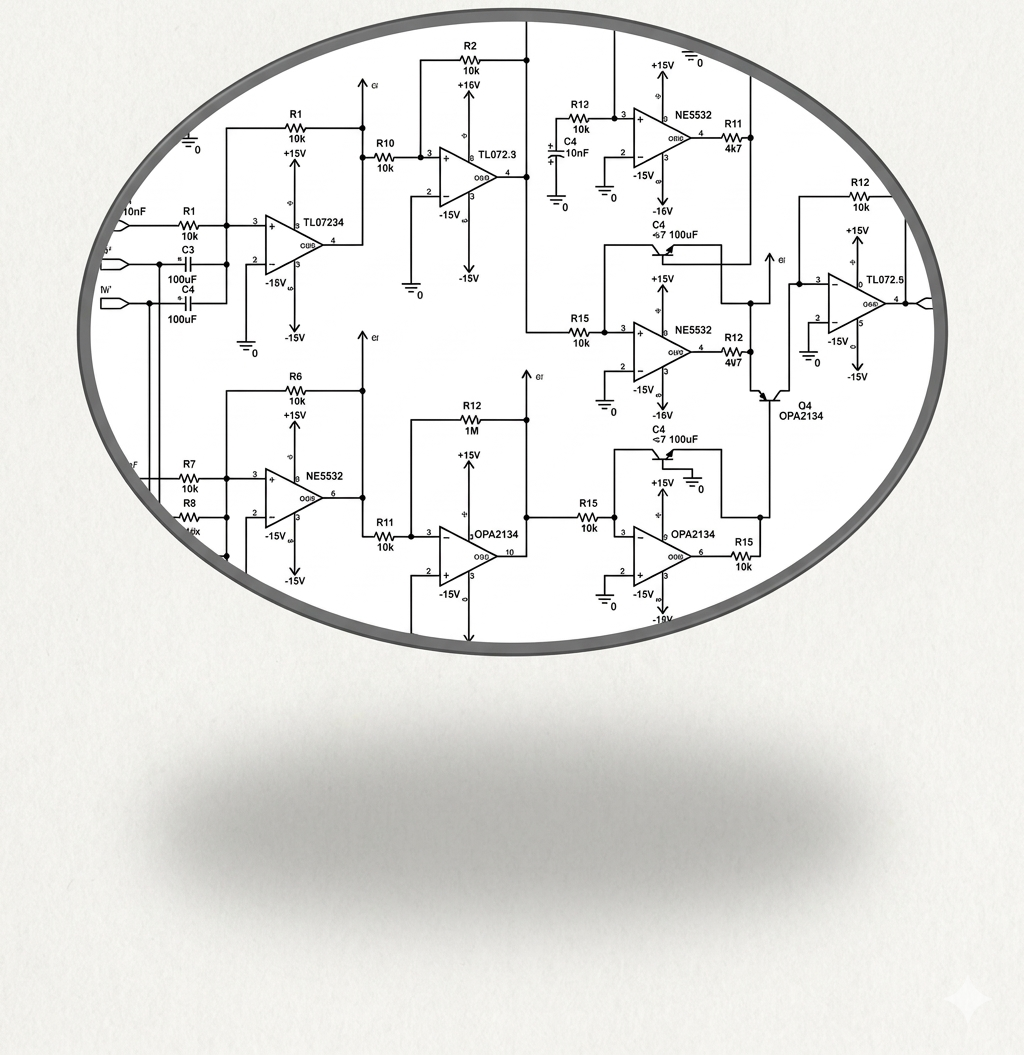

Signal Amplification Circuit

High-gain amplification circuit for precise detection of one-part-per-million (ppm) changes; Superior interference resistance ensures reliable operation under complex conditions;Integrated temperature and vibration compensation maintains precision across diverse environments;

Digital Signal Processor (DSP)

Features a high-performance 32-bit industrial-grade MCU+DSP architecture for powerful real-time computing;Integrates a 12-bit high-precision ADC, achieving 0.025% resolution;High-reliability system design guarantees stable long-term operation in harsh environments;

Advanced Signal Processing Algorithms

Employs a Kalman filter-based intelligent compensation algorithm for ultra-high measurement accuracy;Utilizes adaptive parameter tracking to ensure long-term data stability;Incorporates automated pattern recognition to enhance overall system performance.
Precision Engineering
Sensors
Amplification
DSP+MCU

Algorithms
